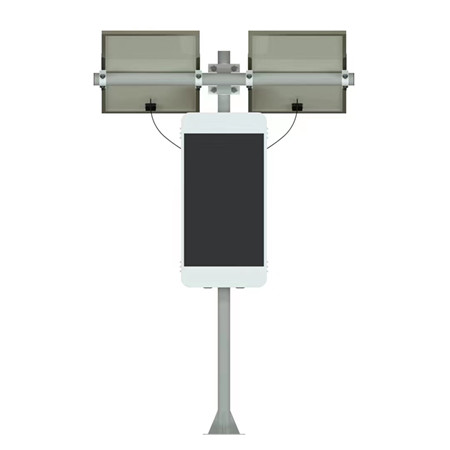

solar powered HD led display for light poles and trailer screens

solar powered HD led display for light poles and trailer screens

0.00
0.00



Main ParameterElectricity Parameter
Pixle Pitch3.84mmBrightness5500-6000cd/㎡
Module Resolution52(H)×52V)Refresh Rate3840HZ
Module Dimension200mm×200mmGray Scale8bits input, correction with 14bits
Module Density2704pixels/panel             Brightness Adjustment100 levels
LED Configuration

nationstar SMD 1921

View Angle140 degree ( horizontal) 140degree(vertical)
Driver Modeconstant current 13sBest View Distance4m
Led Cabinet Size440mmx1000mmMax Power Consumption150w
Screen Size400mmx800mmAvg Power Consumption50-80w, depends on program contents
Screen Resolution104*208=21632 dotsOperation PowerInput Voltage 150W DC 12V-30A(Output 3.8V+2.8V)
Solar Power System ParameterWorking Parameter
Power Storage12.8V100AH, 1280WHOperating Life100,000 hours
Battery Box size690mm*260mm*60mmOperating Humidity15-90% RH
Charge Time8-12 hoursOperating Temperature.-25-65 Celsius degree
Solar Panel Size500mmx1000mmMTBF6000 Hours
Solar Panel Power90-100WProtection LevelIP65
Max Charge Current100AOut of Control Pixel Rate0.01%
Standard Current15AContinuous Working Time≥72 Hours


Solar Powered LED Dislay

Energy Saving & Wiring Free Solar LED Signs

Clean solar energy, Free of electricity

Free of wiring, Easy to disassemble

4G, wifi, u disk storage & Cloud control

50% Energy Saving than traditional LED Display

Front Service For Easy Maintenance

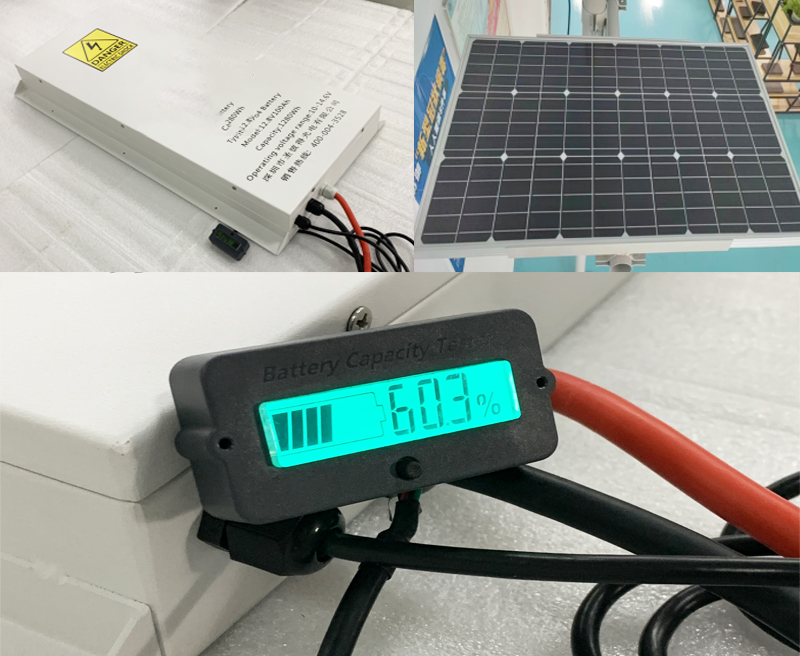

Solar Power System

Our solar power energy saving light pole led display is equipped with built-in battery which has 1280WH capacity to

support led screen contrinuous long lasting working time.

There is a battery power remain indication window on display panel bottom, clients can have direct impression about

how much power remain in the battery.

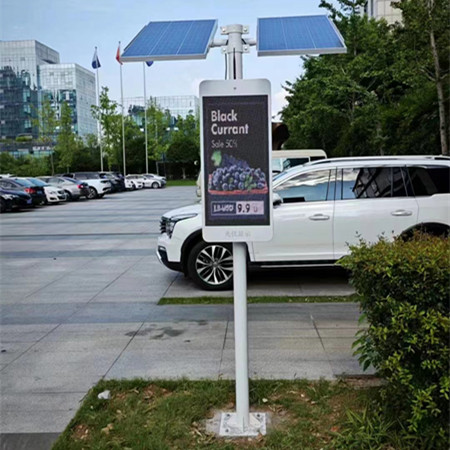

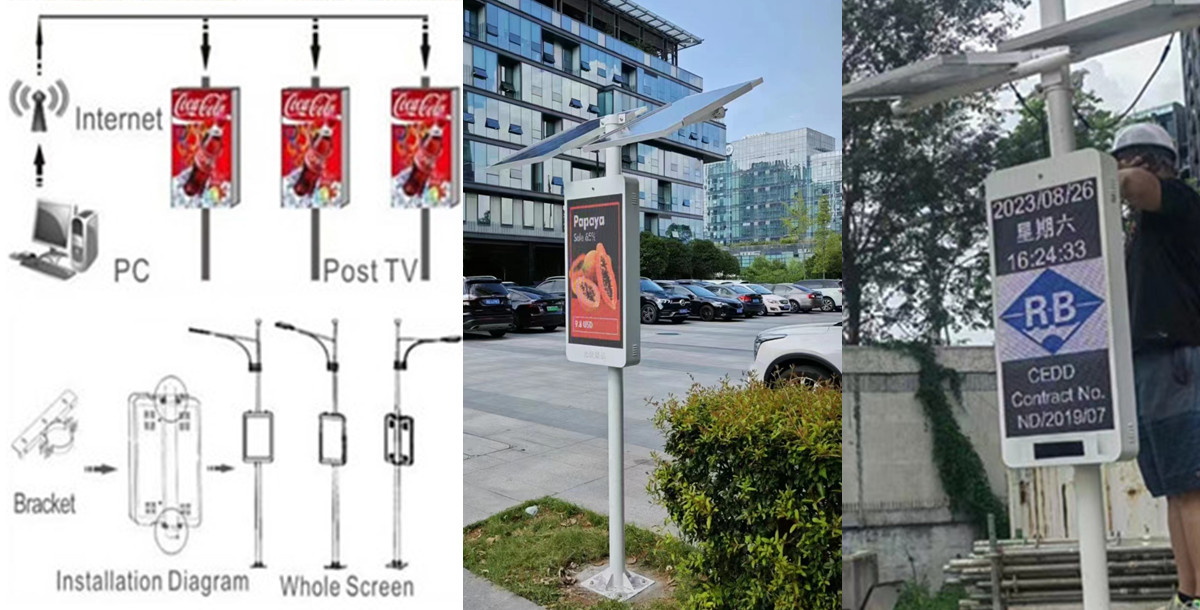

Where there is sunshine, there is the chance to use our solar powered light pole led display, free electricity, free wiring, easy installation and theftproof.

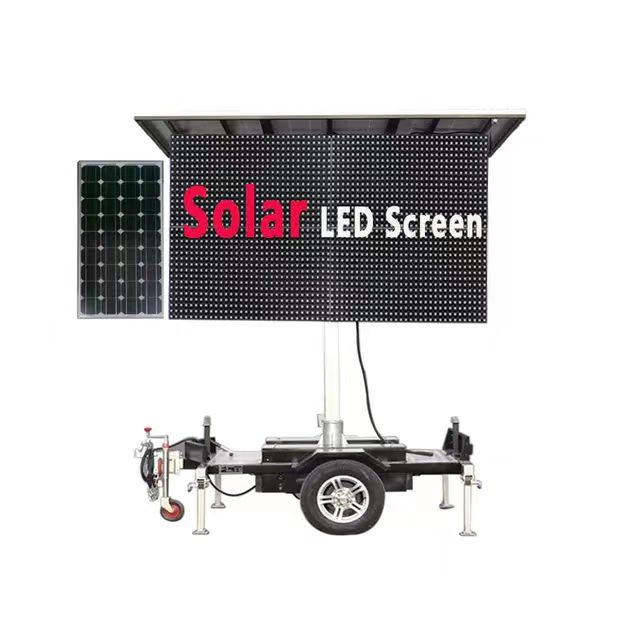

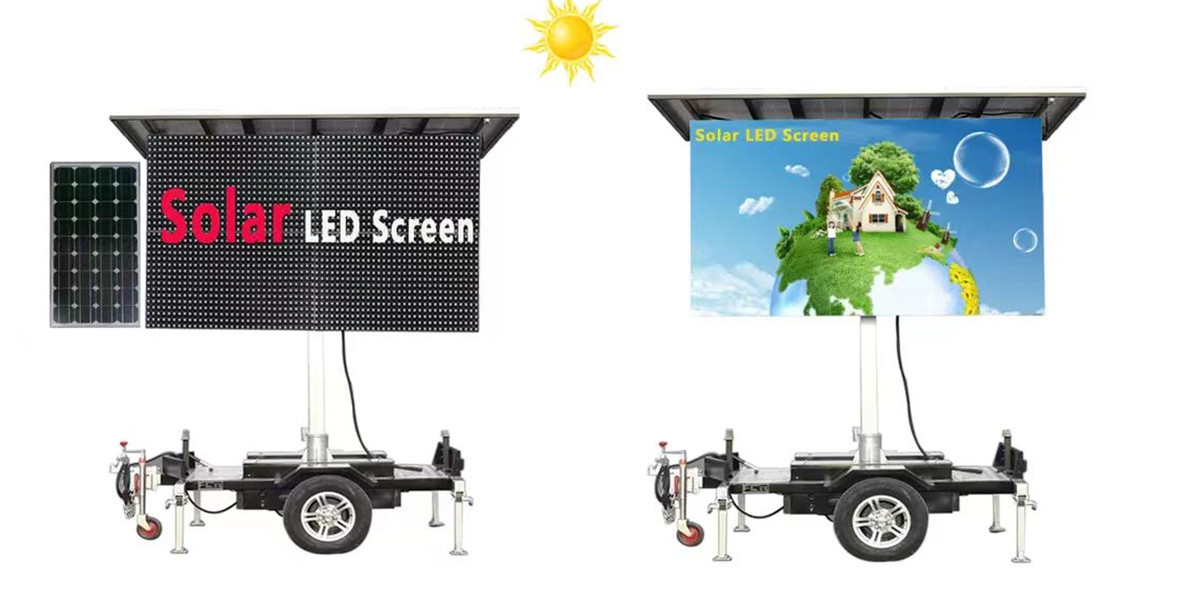

It's possible to customize larger size energy saving display for trailer screen usage.
